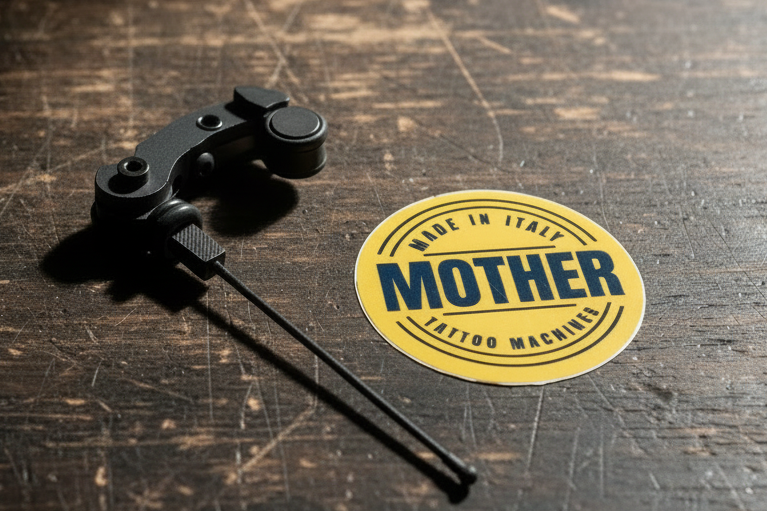

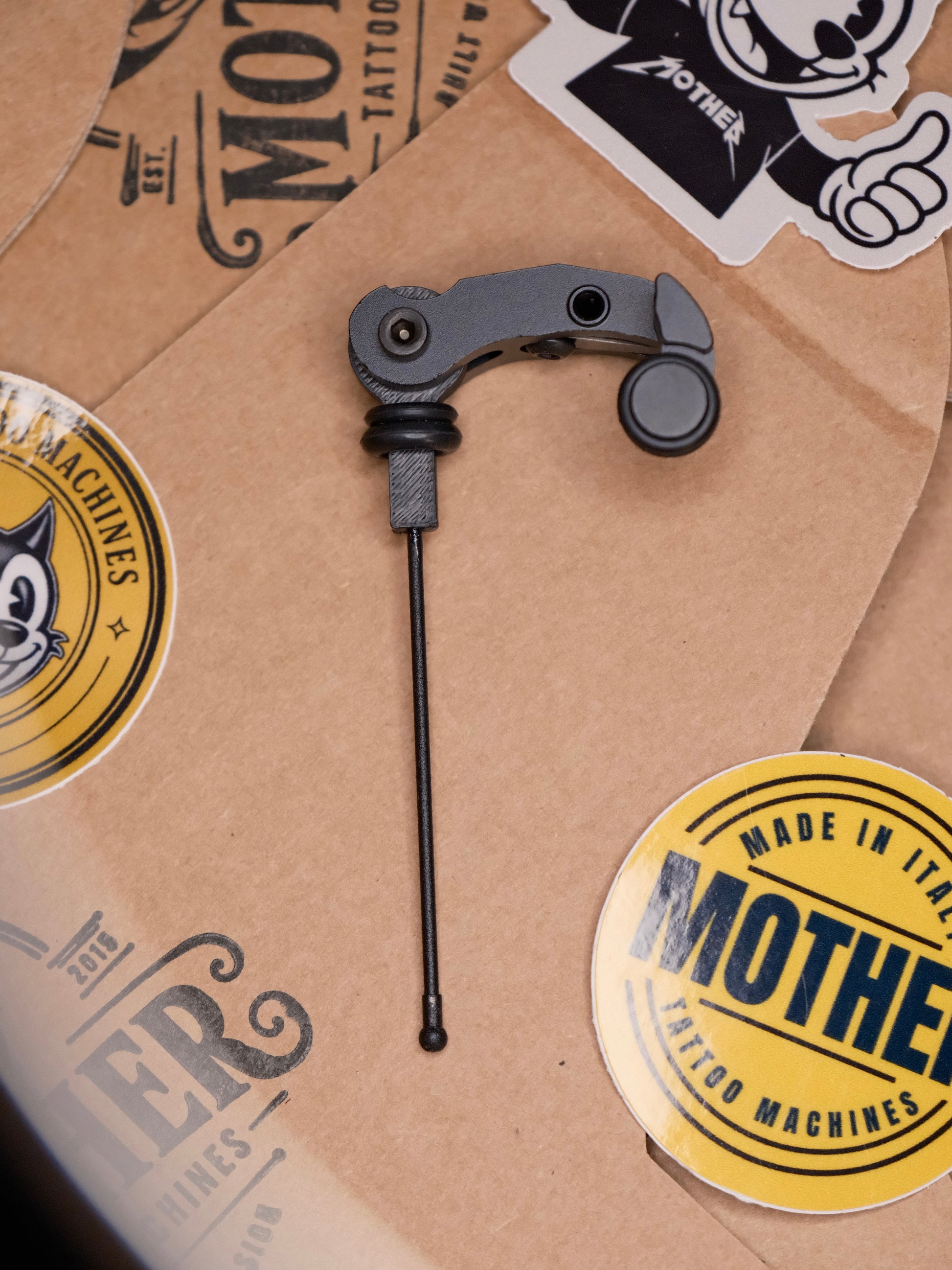

COYOTE v3 NEW bar

For COYOTE V3 model only – The new adjustable BAR system from Coyote does not simply modify the stroke; it directly affects the machine’s dynamics.

By adjusting the screw, the contact point between the eccentric cam and the BAR is changed, while at the same time altering the spring return support point. This modifies the geometry of the mechanism and the angle at which the force is transferred to the needle, changing the machine’s response and the impact intensity.

Unlike the traditional stroke adjustments found on common rotary machines, this system does not simply shorten or extend the needle movement. The stroke remains essentially long, maintaining high saturation capability and excellent ink delivery, while the machine’s character changes: from a softer and more progressive response to a more direct and powerful impact.

This system has been designed to provide a truly functional adjustment, capable of modifying the actual behavior of the machine.

Link to the assembly instructions and setup guide -> https://www.instagram.com/reel/DahhGlkokhH/?igsh=MXhyOTViaDZseGEwZg==

(MACHINE COYOTE V3 SOLD SEPARATELY)
