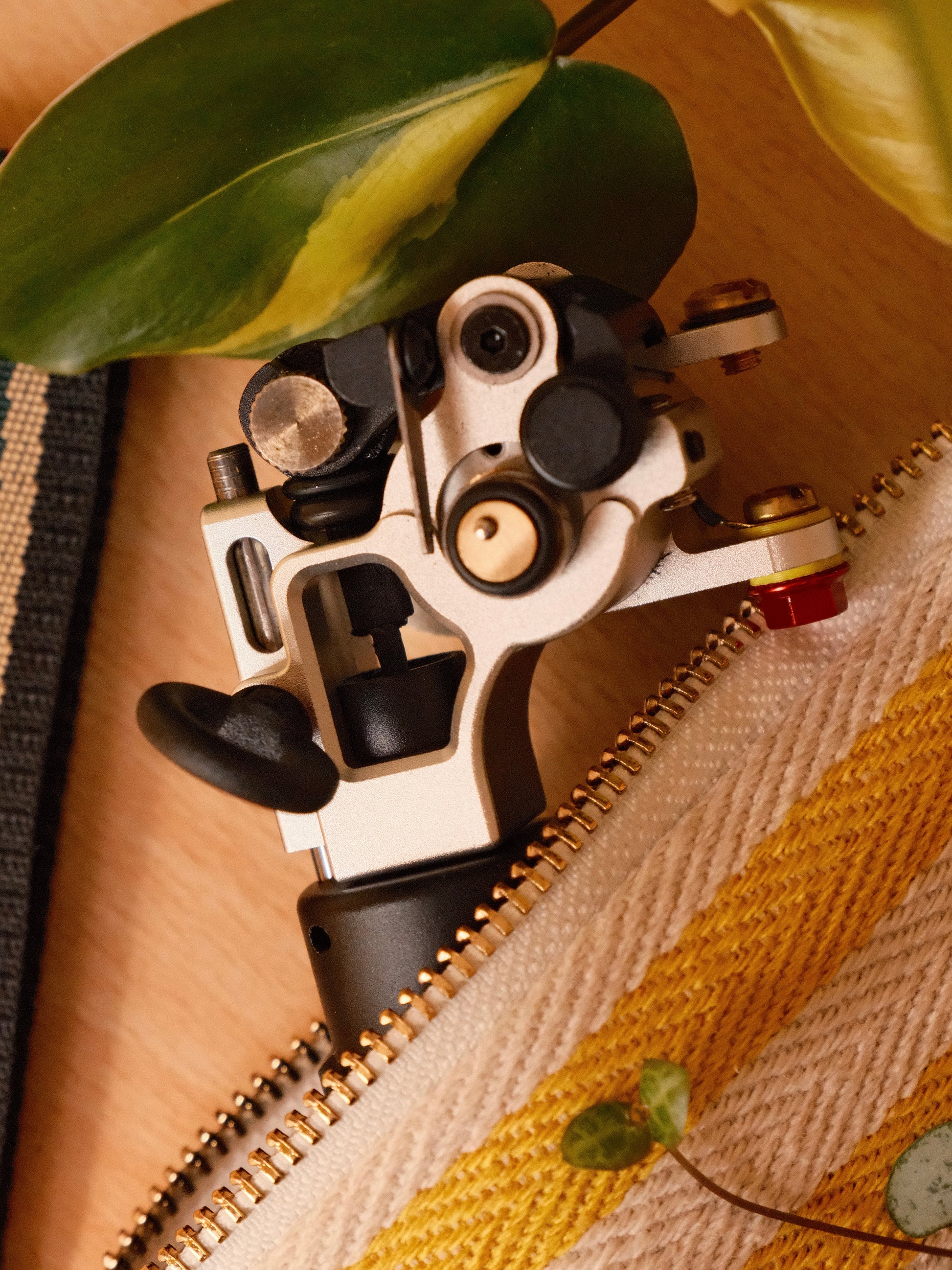

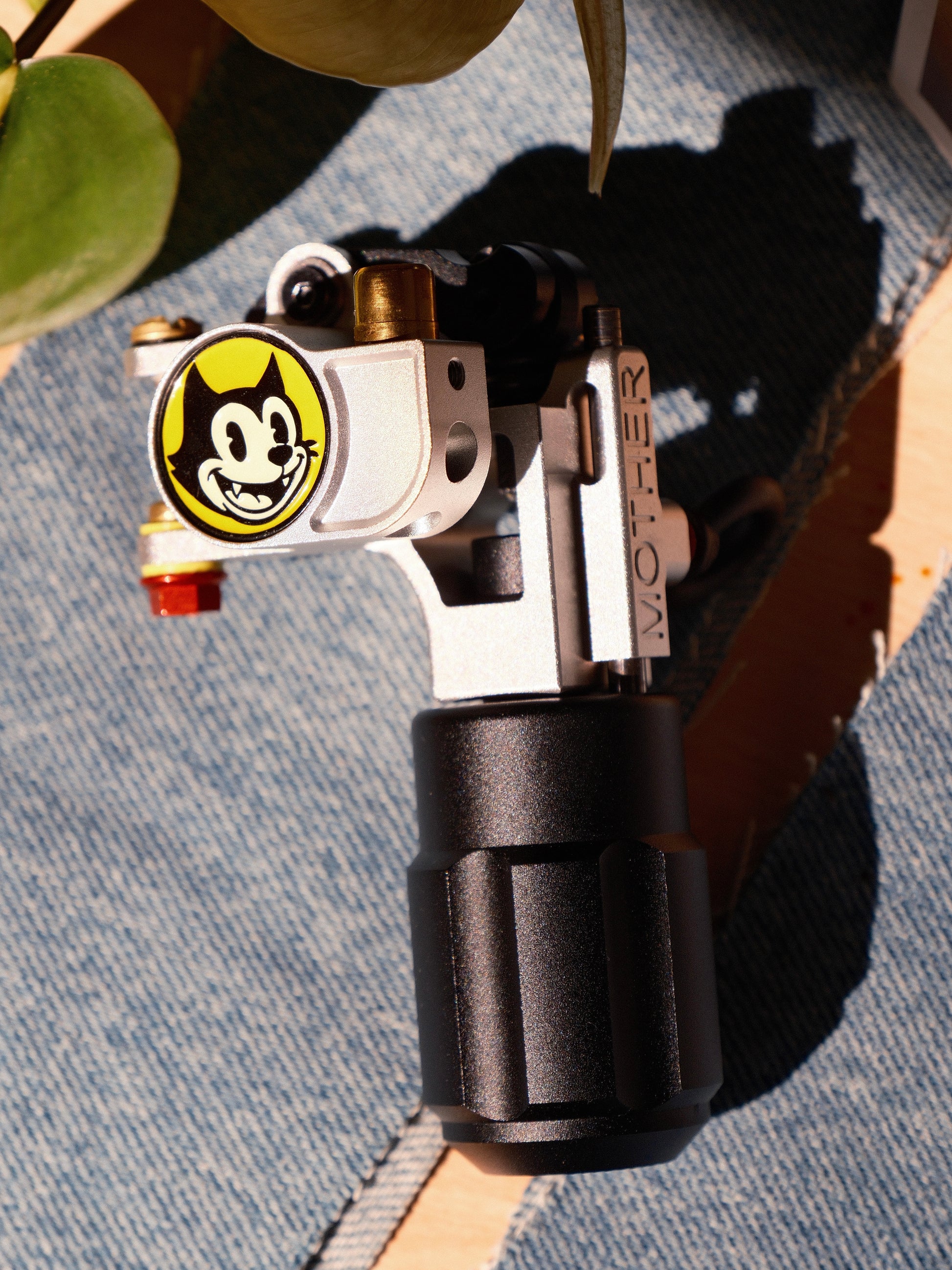

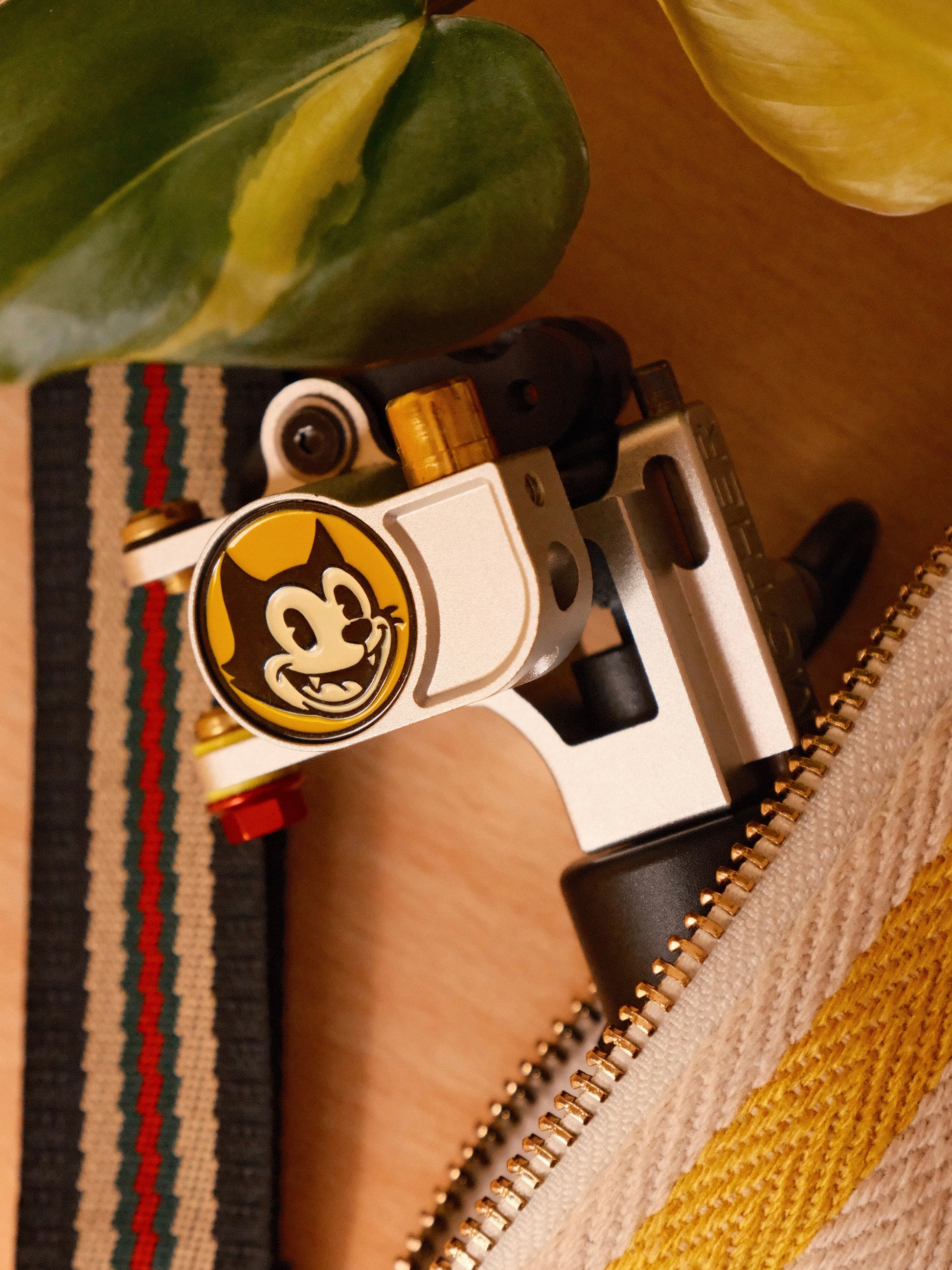

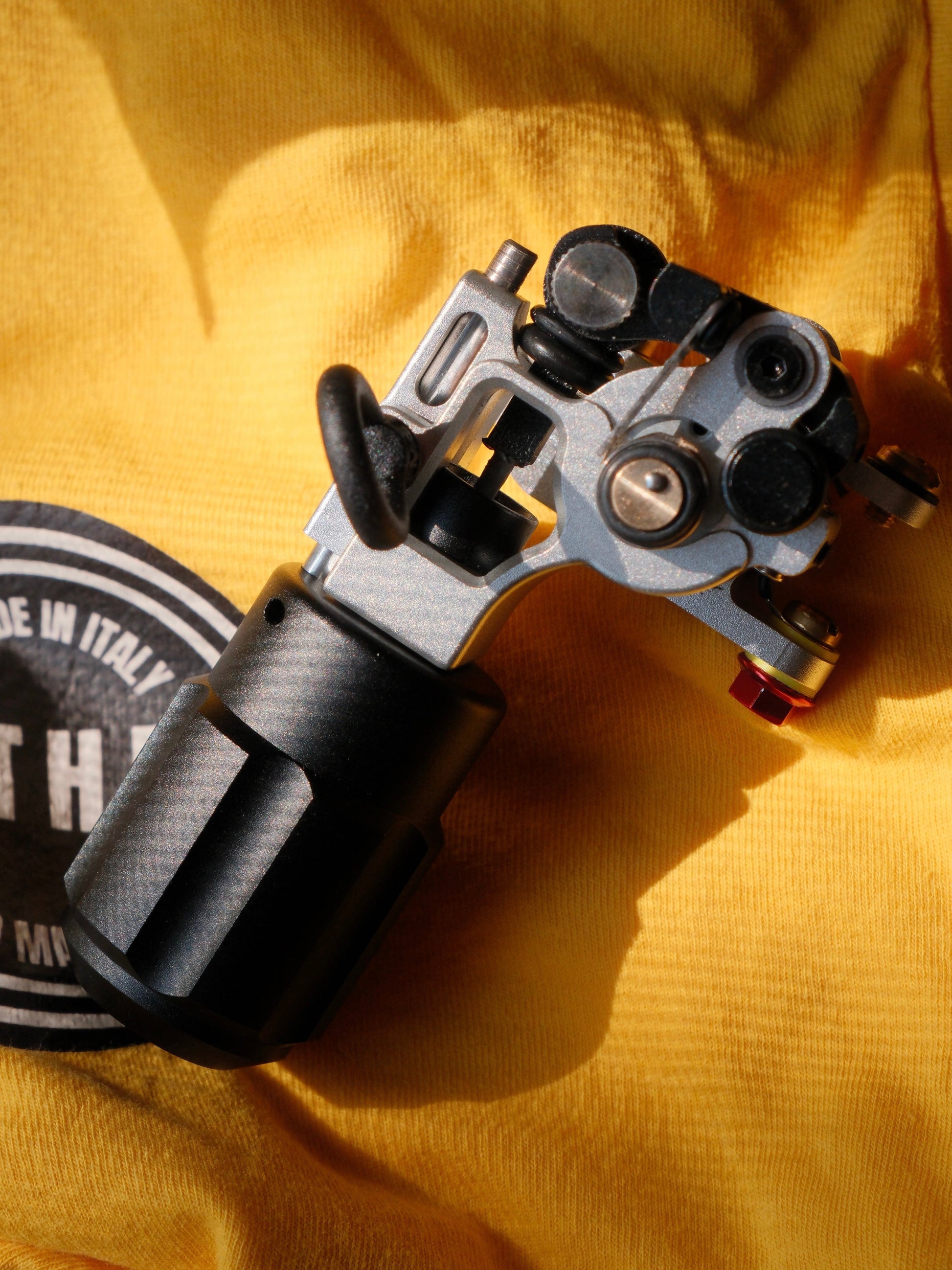

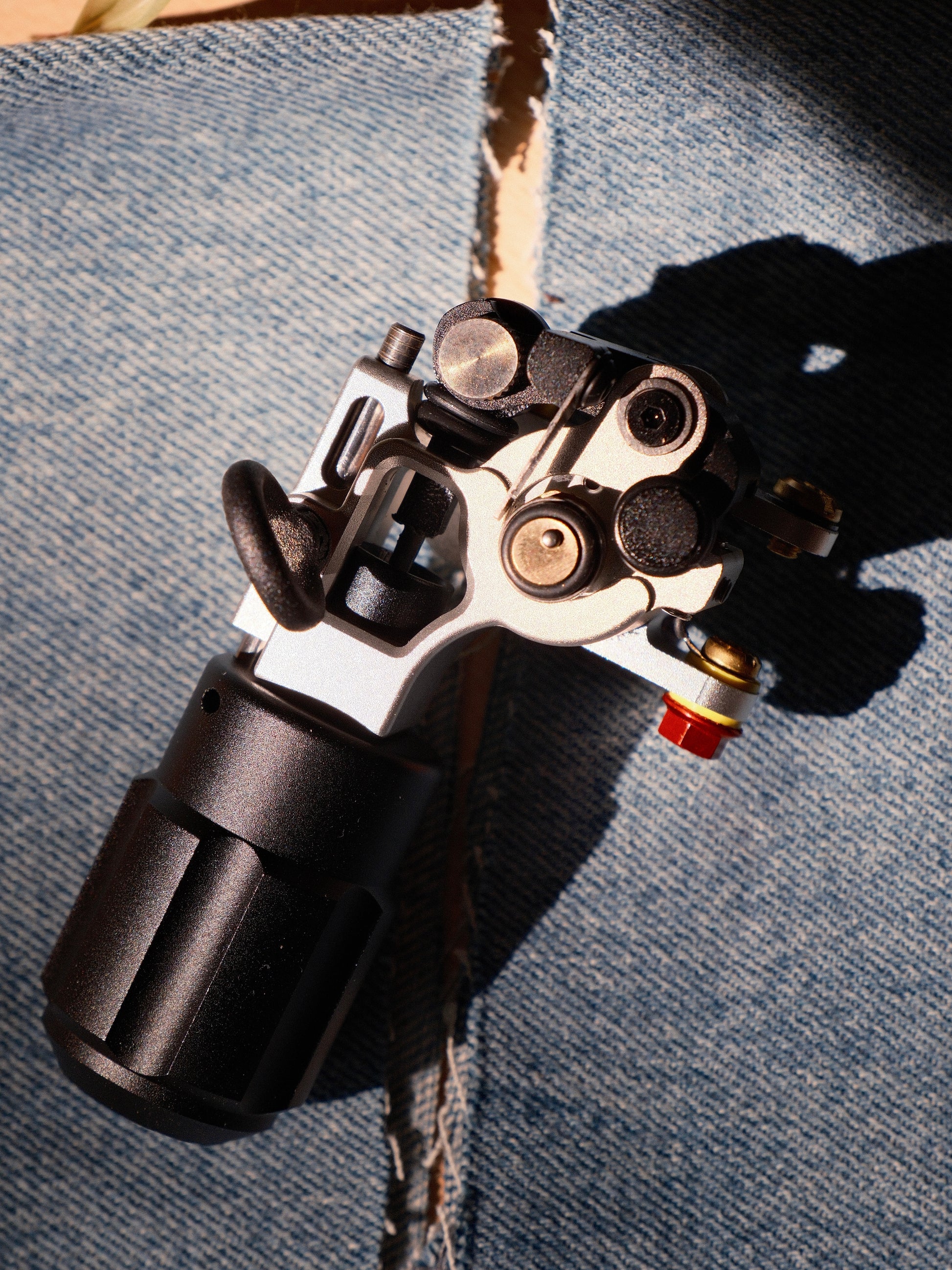

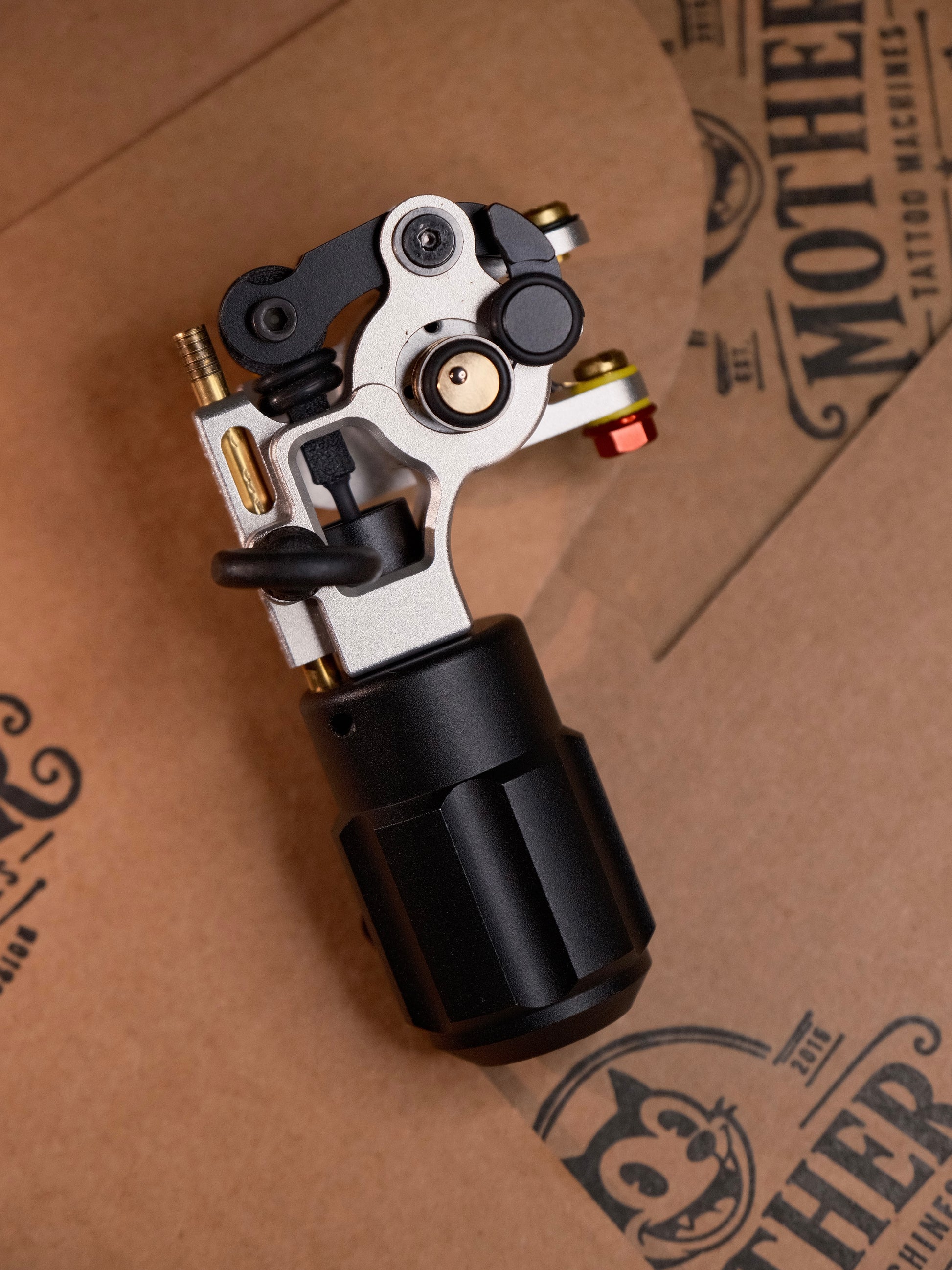

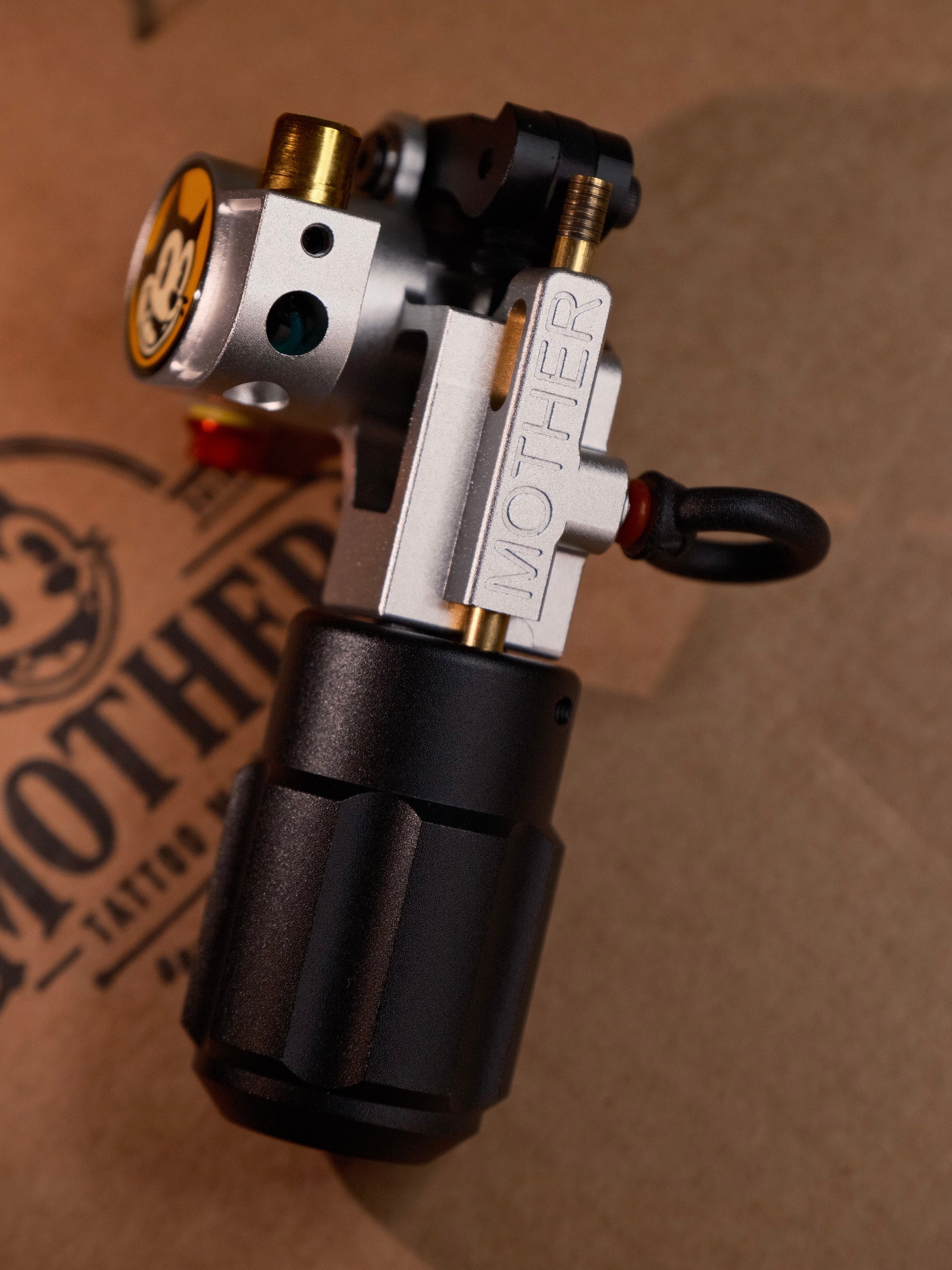

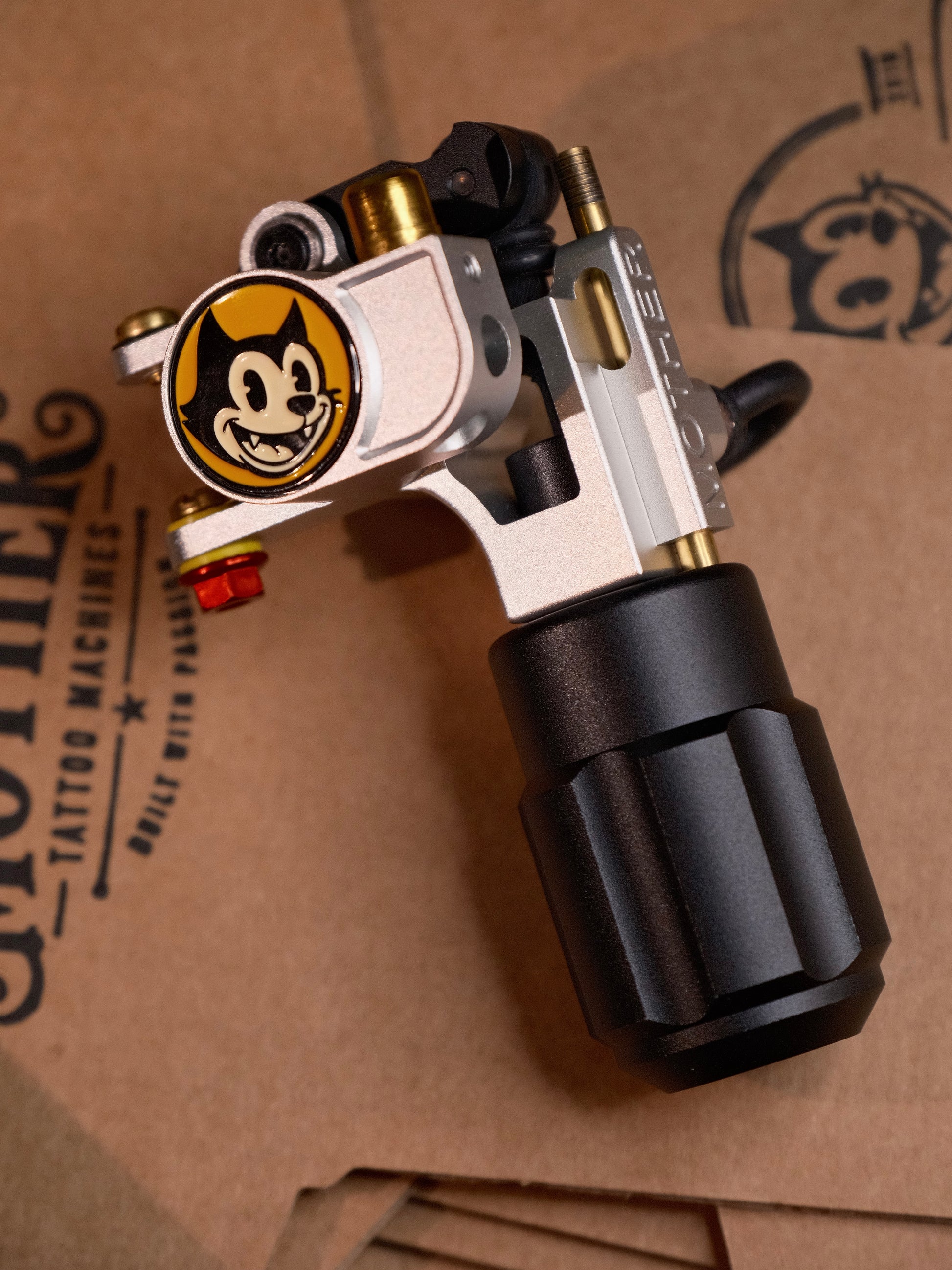

COYOTE V3 - BOBBER

Easy was the key word.

Here, you only adjust two things: needle protrusion from the grip (I added marks so you can set it with the machine off) and voltage, enough to cover every type of needle and cartridge.

With the latest Coyote, I realized the spring created a different hit depending on cartridge resistance, canceling all the work I had done.
Instead of adding two springs, I changed strategy and simplified everything.

It needed a sharper hit, but without vibration.

The hit now comes from an O-ring.
Two versions are included in the box: one softer, one harder, and they swap in seconds.

Removing the spring simplified the whole mechanism and made it possible to manage huge strokes.
Stock setup is well over 5 mm while keeping precision and zero vibration.

The front spring is only a safety at the end of the travel because of the extreme stroke.
It comes into play only at full extension, creating a rebound especially at higher voltages.

Impact happens on another O-ring, eliminating ink splash completely and allowing the extra weight on the bar to be controlled.

The frame is fully hollow, while the grip is solid aluminum.

Lightweight, but balanced ⚖️

Compatible with most cartridges.
